Black 60 degree Electric Home Floor Infrared Underfloor Heating Film Warm Mat 50cmx6m

Black 60 degree Electric Home Floor Infrared Underfloor Heating Film Warm Mat 50cmx6m
  • Продавецplayrf.us
  • Список ценUS $46.24piece
  • Продажная ценаUS $46.24piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,9 (925)

Oписание продукта

Factory Direct Sale -- AC220V 120 M2 Heating Film With Accessories

IMG_0361

_______________________________________________________________

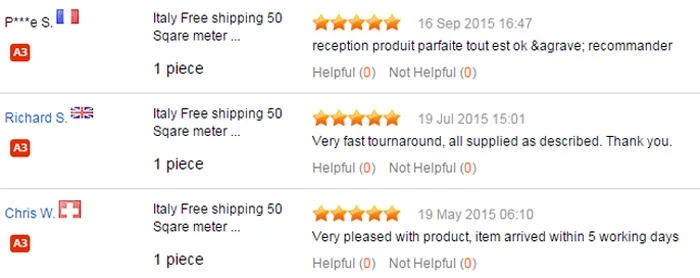

Positive Feedback From All Of The World.



Positive Feedback From BelgiumPositive Feedback From CrechPositive Feedback From Spain

Positive Feedback From Italy

_______________________________________________________________

Heating film wiring plan A

Heating film wiring plan B

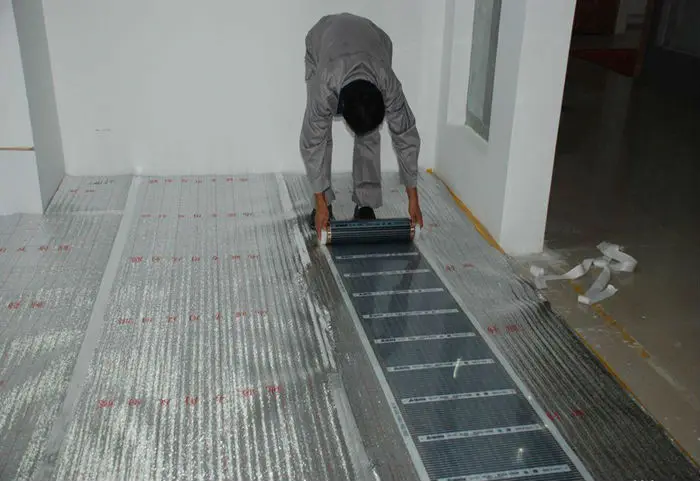

Heaint Film Installationheating install plan_______________________________________________________________

Clam Pliers



Packing include:

1, 120 square meters (0.5m*240m) Floor Heating Films

2, AEY-379, 20A floor heating thermostats 9pcs

3, Clamps 1 Bag (100 Pieces)

4, Clamp Plier 1 Piece

5, Water-proof Insulating Daub 2 Roll

6, Black Insulating Tape 3 Roll

7, China To Europe Transport Line Free Shipping (No Customs Tax, shipping time 7-10 work days)

_______________________________________________________________

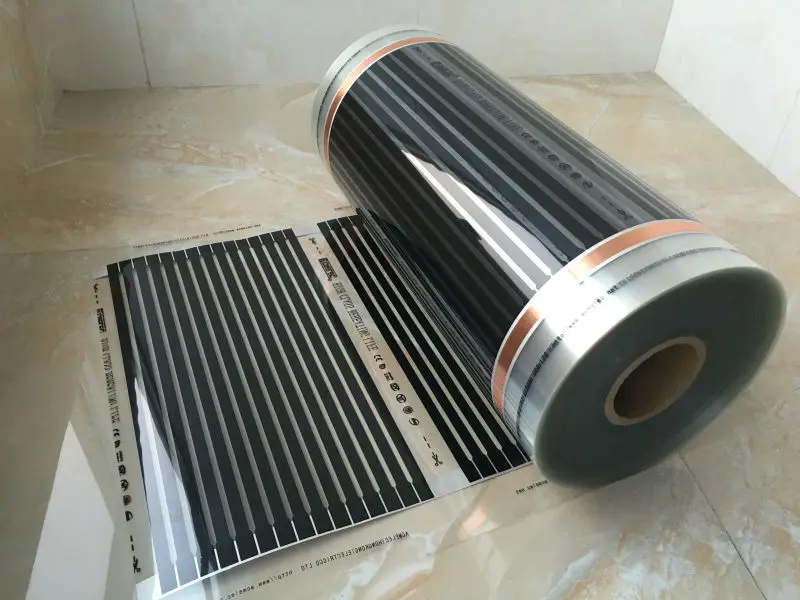

Infrared Electric Heating Film Size:

Item No.: TF-705

Width: 0.5m (50cm)

Length: 240m

Thickness: 0.25mm

Weight: 58kg

Electric Consumption: 220 Watt per square meter



Infrared Electric Heating Film Specification Data:

Power supply: 230VAC, 50Hz

IP Grade: IP54

Compression strength: 2750V

Tensile strength: 0.15mp/cm2

Insulation grade: B1

Ambient temperature: -40~+90 degree C

Radiance: 75%~85%

Oxygen index: >31%

Thickness: 0.25mm

Wavelength of radiation: 8~15μm

The max breakdown voltage: 10,000V

Melting temperature: 110 degree C

Flame retardant rating: UL94VO

Infrared energy: 756.9K/m2

Adhesive strength: 8.0kg/cm2

The max surface temperature: 73 degree C





_______________________________________________________________



Power Consumption of heating film:



220W/Square meter.Means full loading: 0.2 kWh. Installed electric film heating system, are relying thermostat control, intermittent work to make the room temperature is maintained constant. When the room reaches the set temperature, the system will enter standby mode.

Paved area of 70% of the room can achieve heating requirements. According to the test, when the outdoor temperature is -6 degrees Celsius, the indoor temperature want to maintain at 20 degrees Celsius, under the control of the thermostat, electric film per day per square meter of actual working time is 4-8 hours. Daily consumption per square meter is about 0.9 kWh.

_______________________________________________________________



Application-heating filmHeating Film Warming HomeHeating Film For Home Warming

_______________________________________________________________



Pictures:

IMG_0374IMG_0381IMG_0363IMG_0364

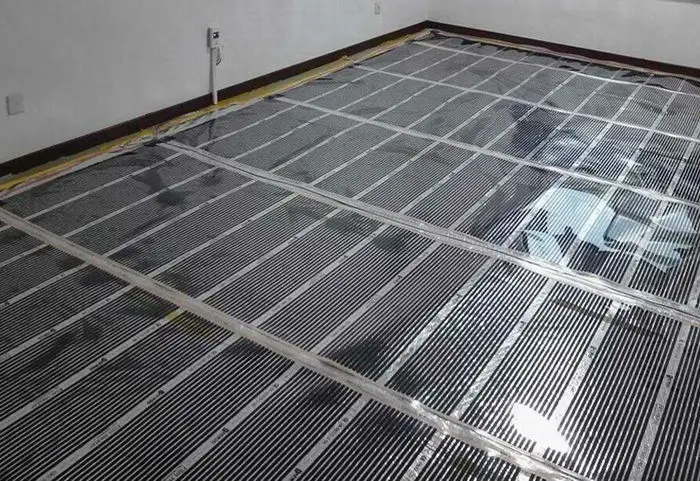

heating film install case 009heating film install case 002heating film install case 0010heating film install case 007

FAQ

Customers Question 1: Will electric film heating leak? Waterproof?
Answer: no. Electric film to warm with good insulating properties, sealed waterproof, flame retardant and anti-aging properties, can meet Europe, China’s security certification.







Customer Question 2: electric film to warm the same principle with electric blanket?
Answer: Not the same. Electric blanket is a nickel -chromium wire heating, heating cable is nickel-chromium wire heating too. (A magnetic field, power consumption intensive) electric film to warm the “carbon " far -infrared heat. (Power consumption is small, has therapeutic effect)









Customer Question 3: Will electric film heating produce electromagnetic waves?
Answer: no.






Customer Question 4: Will power consumption of electric film as much as warm electric heating (electric stove) does?
Answer: Electric heating film working principle is not the same, low running costs. Electric heating, electric stove, electric oil- heating devices, regenerative heating stove are all intensive power consumption.



Customer Question 5: When electric film heating installation, what are the requirements on the ground?
Answer: rough house cement rough surface can be laid directly; you can also pave it on marble, ceramic tile, wood floors etc.

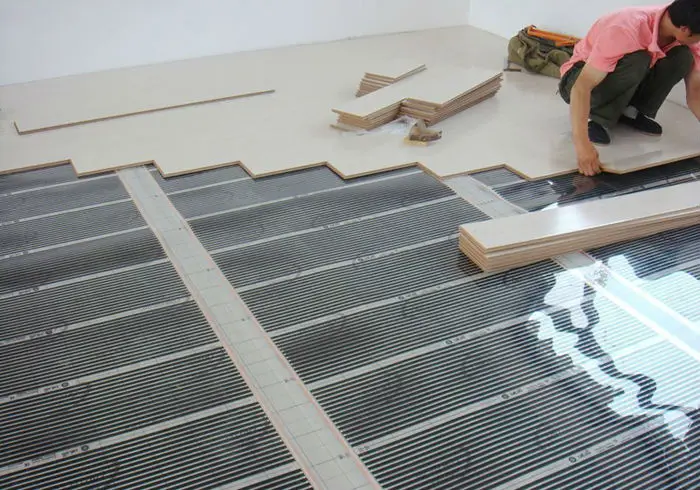

Customer Question 6: After electric film installation finished, what kinds of materials can be put above it?
Answer: wood flooring, laminate flooring, floor tile (marble, tile), vinyl flooring and so on.







Customer Question 7: Can pure solid wood floor put above electric film?
Answer: no. For pure solid wood floor itself features such as high water content, low density, under heated conditions, distort, distortion or cracking.





Customer Question 8: Is there requirements for thickness when laying laminate floor above electric film?                                                                                                      Answer: laminate flooring would better not more than 8 mm thick, too thick not conducive to save energy.
