Oписание продукта

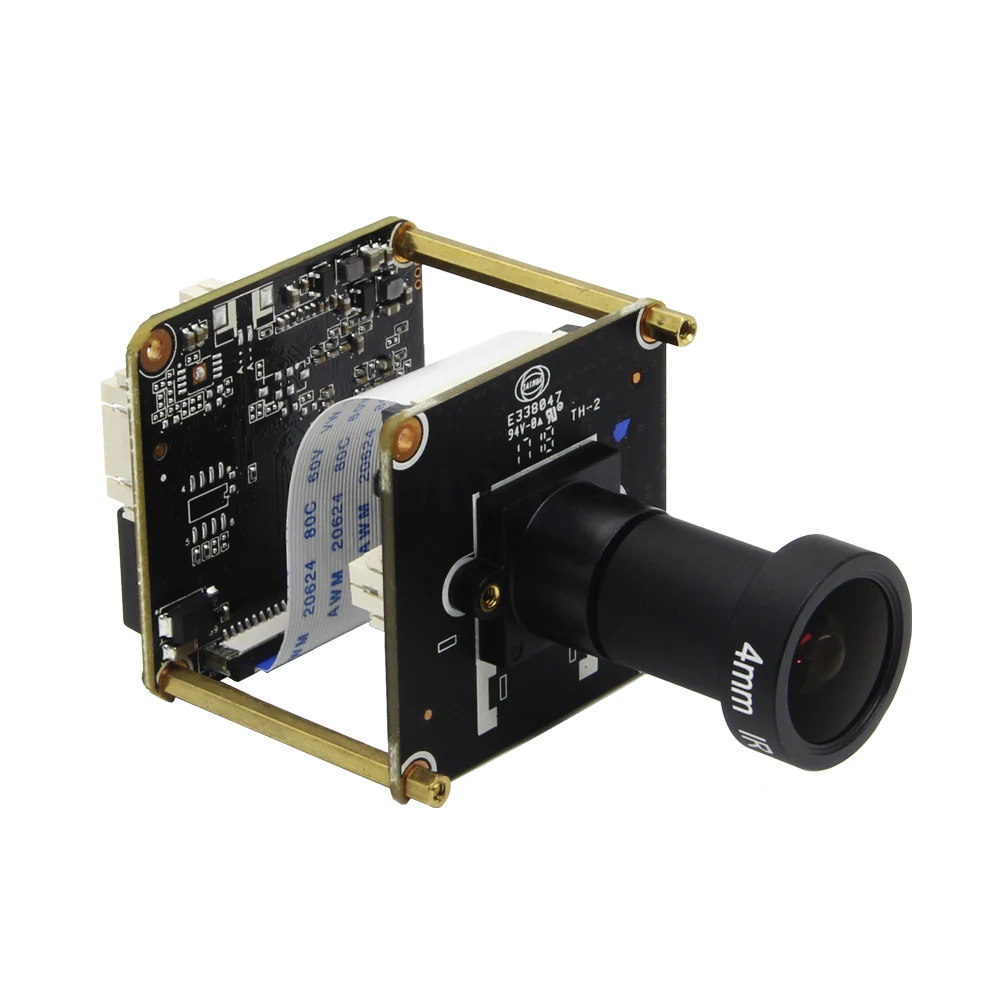

Starlight IP Camera 1080P H265 Module Board use SONY IMX307 Sensor and HI3516EV100 with F1.2 4mm Lens Free Shipping

2

IMG_1983 gai dark

     Module FEATURE


1. 2MP resolution starlight module, 1/2.8 inch Sony IMX307 and has a Large Aperture F1.2 4mm Lens.
2. It can be called ultra low light module, because of its Sony Starvis Sensor IMX307and uniqueLarge Aperture F1.2, which make colourful image in low illumination environment.
3. Module has very wide angle MAX 110 degree.
4. The software is:(English and Chinese Vision):
5. The firmware is: https://drive.google.com/open?id=1MWfLC_aA7naTJVZg_mWTDbSDLHnUlSPy
6. Default IP:192.168.1.168 ,Login Name:admin,no password or password:admin.
7. It supports onvif and RTSP, about RTSP, the port is 80. The URL for main and sub stream: Main stream: rtsp://ip:port/ch0_0.264; Sub straem: rtsp://ip:port/ch0_1.264



playground

superStar41

superStar42

superStar4





     Specification



Model

IP4-S307

System Architecture

ARM926   RTOS HI3516E

Image Sensor

1/2.8”  CMOS Sensor IMX307

S/N Ratio

> 39.1 dB

Resolution

1920 x 1080 169 High Defination

Minimum Illumination

Color: 0.001 Lux

OSD

Date Time & Title

White Balance

Auto

Day & Night

Color

3D-DNR

Auto

Mirror/Flip

On / Off

Privacy Masking

4 Zone Selectable

Video Codec

Two Streaming at the Same Time:



H.264/H265/H.264+/H.265+



[email protected]  @128~5000bps



H.264/H265/H.264+/H.265+



[email protected]  @128~1500bpss

Audio Codec

G.711 A-Law @ 16bits 8kbps

Thunder Prevention

Standard IEC61000-4-5

Power Input

DC12V

Connectors Operation

Analog Audio In/Analog Audio Out/IR-Cut Controller

Temperature/Humidity

-10℃ to +50℃ / 30% to 80% RH

Storage Temperature/Humidity

-20℃ to +60℃ / 20% to 90% RH

Dimension

38(H)×38(V)×1.2(T)mm

Weight

6g



Warm Tips



1.Do not install the camera in a water-splashed or highly humid environment.

2.Do not use the camera where the ambient temperature drops below -10℃ or rises above +50℃ and under 90% humidity. The images and component parts may be adversely affected or the camera may not function correctly.

3.Never open the camera or take module apart case because there are precision electrical and electronic components inside and an accident may results.

4.Do not put anything metallic or any other foreign substances through the vent, as a fire or electric shock may result.

5.Be sure to turn off the power before installing or making connections.

6.Do not install the camera in places exposed to heat, vibrations and shock.

7.Be careful not to drop or give a strong shock to the camera while transporting it.

8.Do not touch the image sensor.

9.Do not orientate the camera directly towards the sun.

10.Some types of lenses may hunt in adverse light conditions. In such cases please re-adjust the lens in line with the instructions in the manual.

11.Because of the characteristics of the digital image device, images may look unnatural at high temperatures, this does not mean the camera is faulty.

12.Please forgive that if any change of products will not specify additionally.
