SMSL SAP 10 MINI HIFI audio Full Balance Headphone Amplifier Linear Power Supply High Power Headphones Amplifiers AMP 2*TPA6120

SMSL SAP 10 MINI HIFI audio Full Balance Headphone Amplifier Linear Power Supply High Power Headphones Amplifiers AMP 2*TPA6120
  • Продавецplayrf.us
  • Список ценUS $191.99piece
  • Продажная ценаUS $191.99piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,1 (208)

Oписание продукта

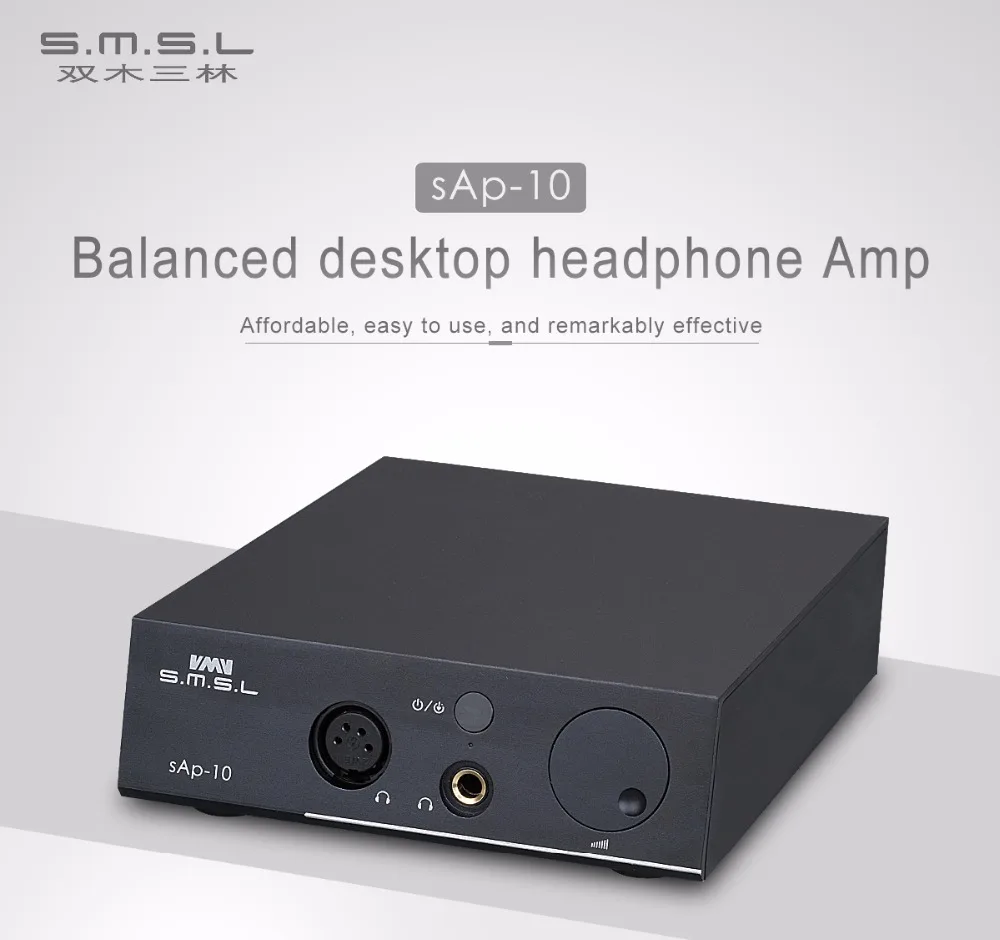

SMSL SAP-10 balanced headphone amplifier

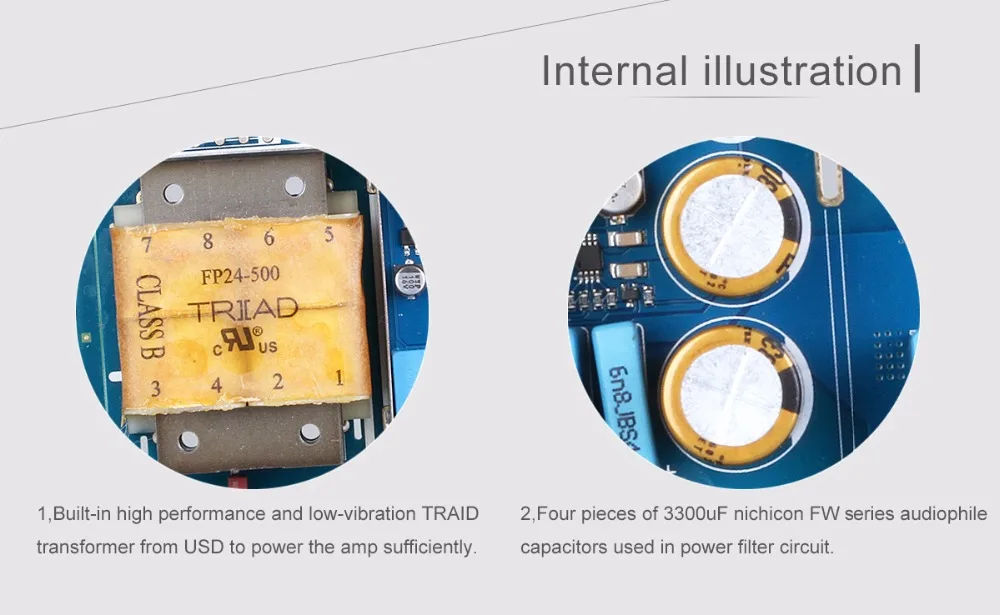

Internal illustration

-Built-in high performance and low-vibration TRAID transformer from USD to power the amp sufficiently.

-Four pieces of 3300uF nichicon FW series audiophile capacitors used in power filter circuit.

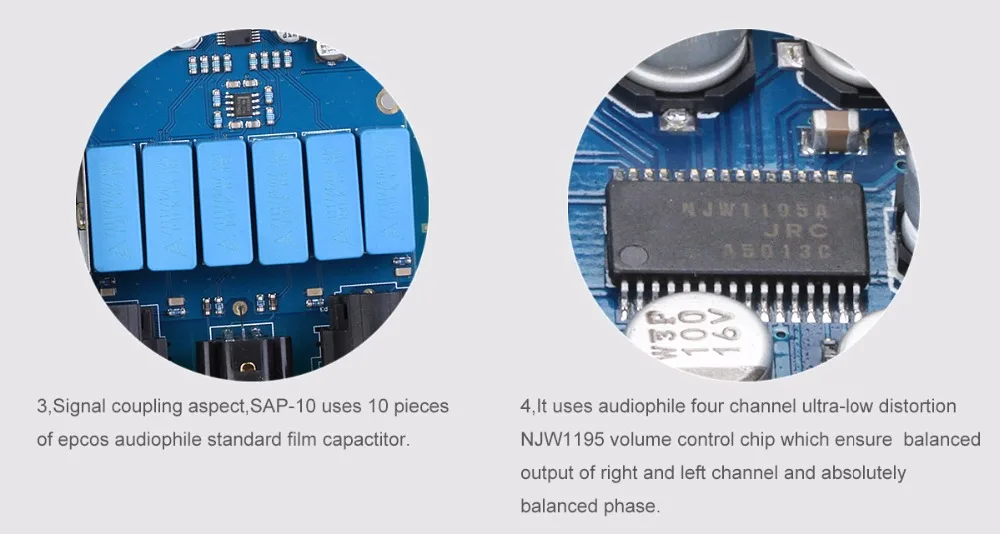

-Signal coupling aspect,SAP-10 uses 10 pieces of epcos audiophile standard film capacitor.

-It uses audiophile four channel ultra-low distortion NJW1195 volume control chip which ensure balanced output of right and left channel and absolutely balanced phase.

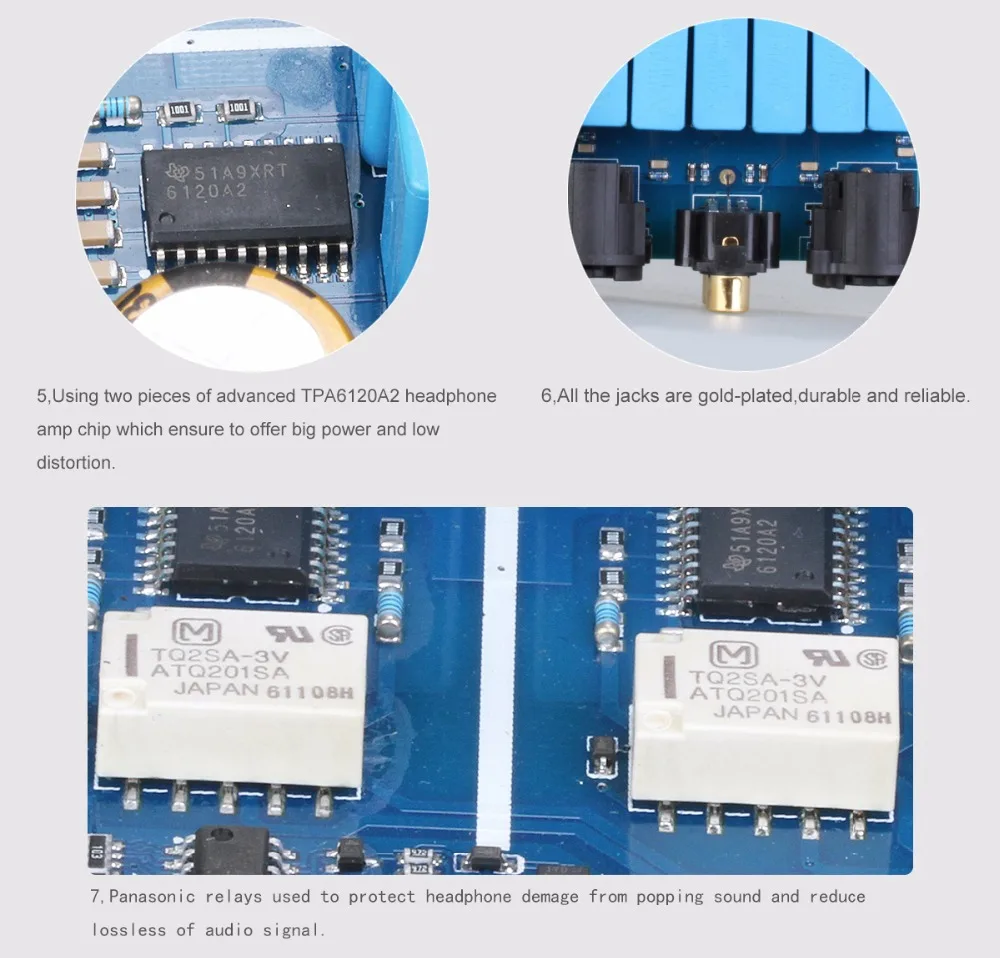

-Using two pieces of advanced TPA6120A2 headphone amp chip which ensure to offer big power and low distortion.

-Panasonic relays used to protect headphone damage from popping sound and reduce lossless of audio signal.

-All the jacks are gold-plated, durable and reliable.

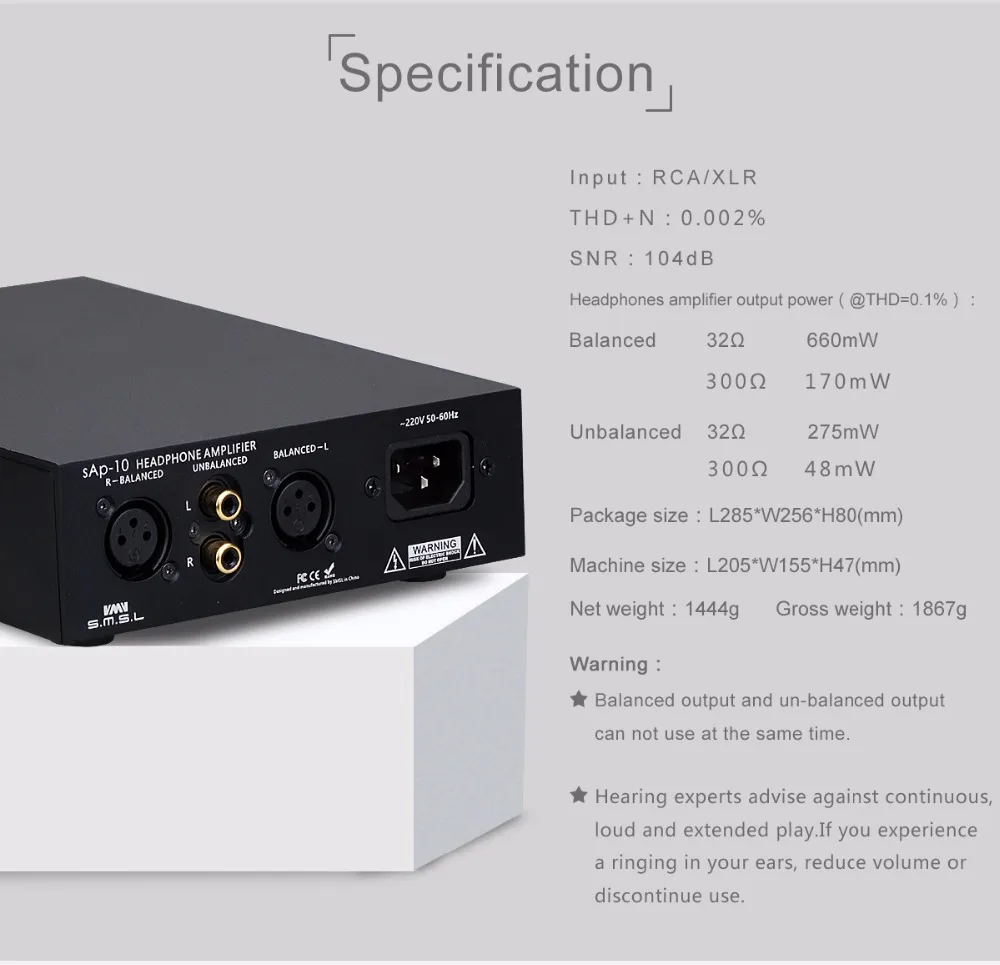

Specification:

Model: SAP-10

Category: Balanced Headphone Amplifier

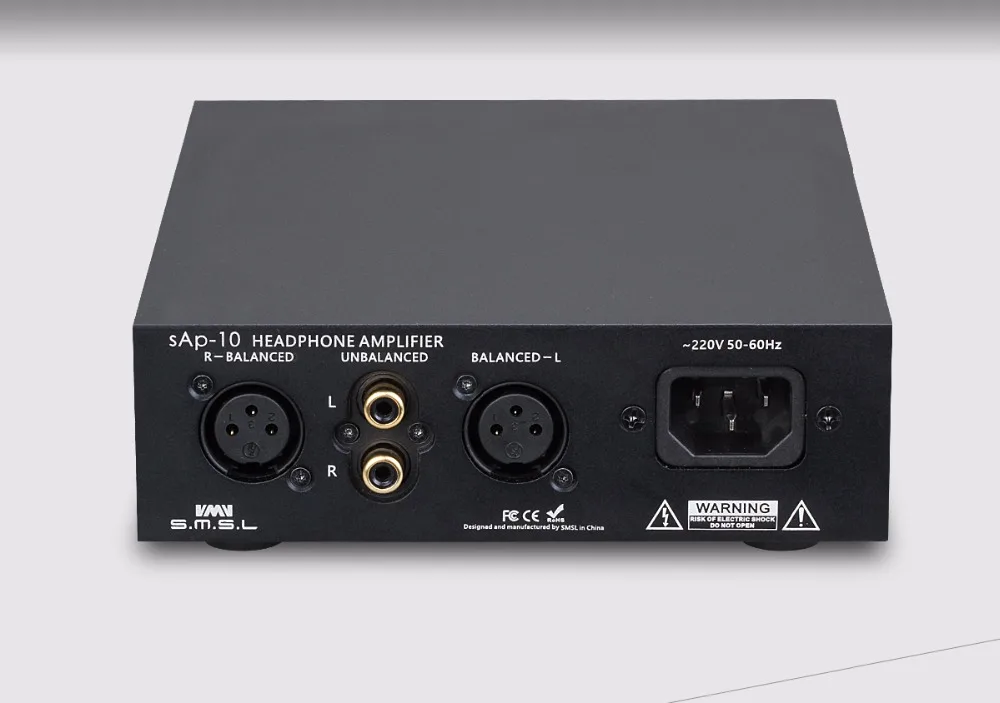

Input interface: RCA / XLR

Output interface: four core XLR jack/ 6.35mm headphone jack

SNR:104dB

Headphone amplifier output power ( THD + N = 0.1%):

Balanced:32 ohm 660mW

300ohm: 170mW

Unbalanced:32 ohm 275mW

300ohm 48mW

Power consumption: 5.5W

Package size:L285*W256*H80mm

Machine size:L205*W155*H47mm

Net weight: 1444g

Gross weight:1867g

Note: The balanced output and the unbalanced output can not be used at the same time!
