Features:

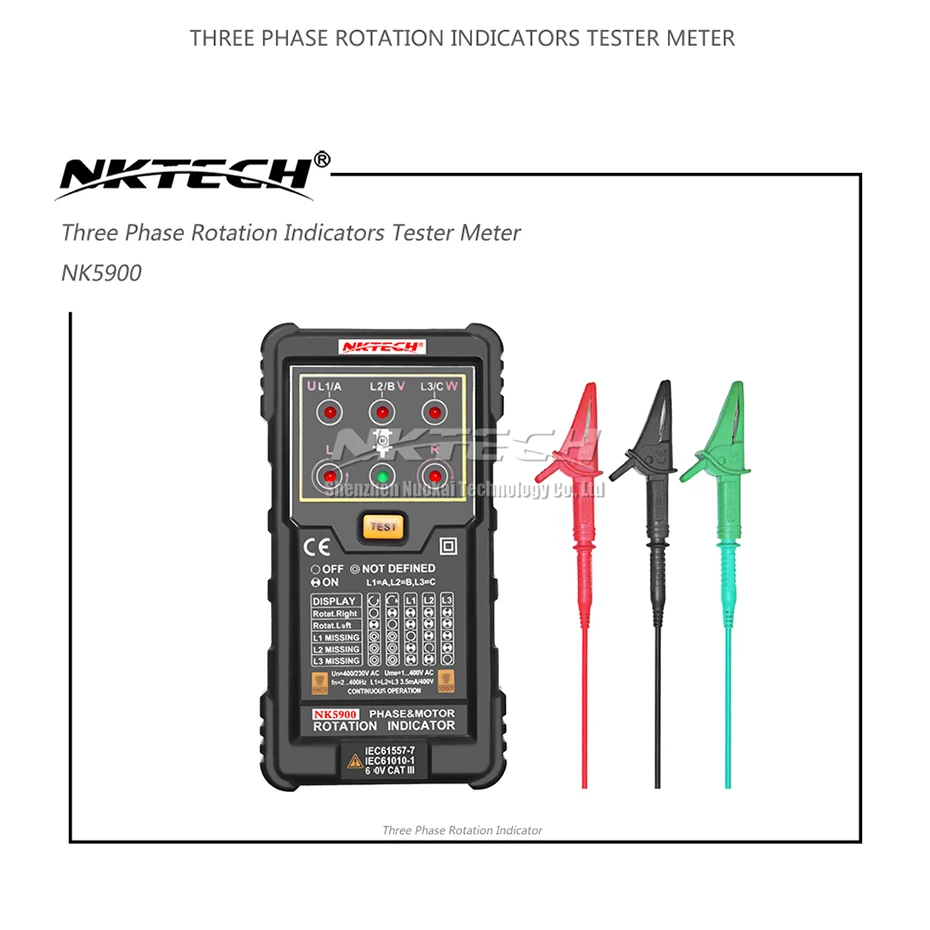

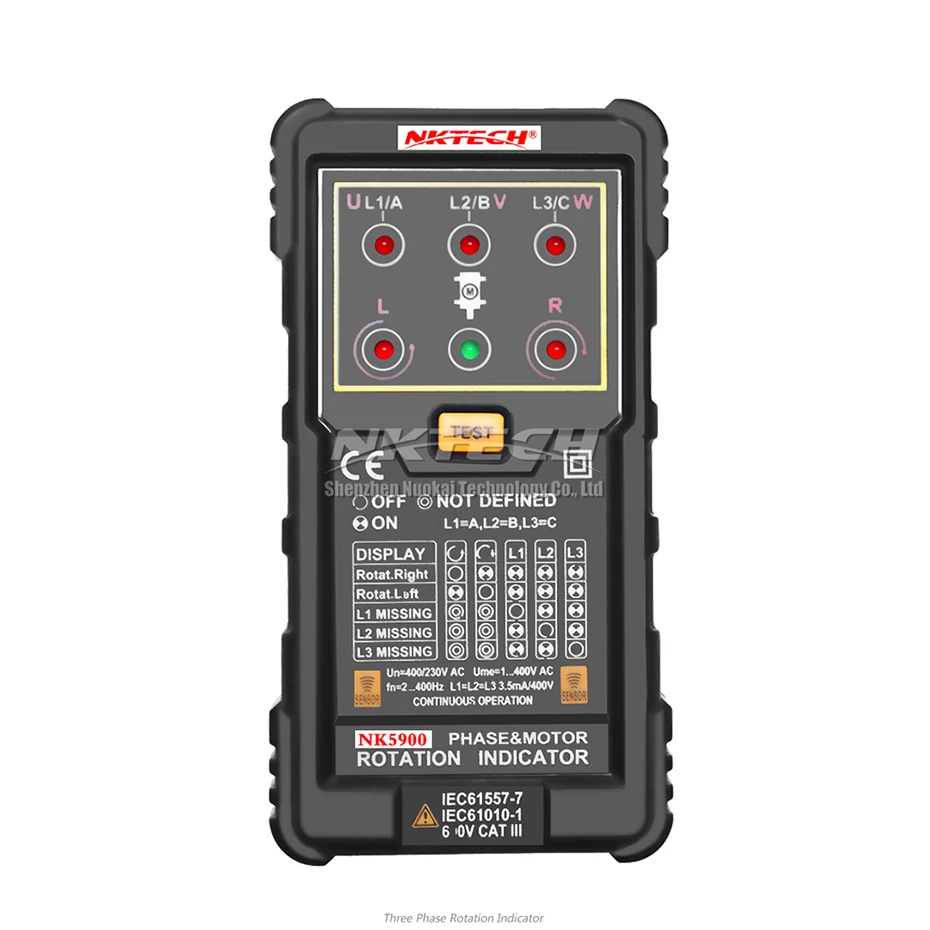

NKTECH NK5900 Motor and Phase Rotation Indicator is used to test magnetic field direction of three-phase system, phase rotation, motor rotation direction.
Without a need to link testing line, the motor rotation direction can be decided by placing this indicator above the motor and aligning it with motor drive shaft.
It is durable, reliable and light-weight handheld device, which is necessary tool for those who often install, repair or maintain three-phase system or motor.
Safety Specifications
Electrical Safety: Meets DIN VDE 0411, IEC 61010 DIN, VDE 04 13-7, EN 61557-7, IEC 61557-7.
Maximum Operating Voltage (Ume): 400V AC for all ranges.
Protection Level: CAT.III, 600V.
Environmental:
Operating Temperature: 0 to 40 Celsius.
Operating Altitude: 2000m.
Pollution Degree: 2 Mechanical.
Electrical Specifications:
Power Supply: 6F22/9V Battery (Not Included).
Consumption: max. 20mA.
Determine Rotary Field Direction.
Nominal Voltage Rotary Direction: 1 to 400V AC.
Nominal Voltage Phase Indication: 120 to 400V AC.
Frequency Range: 2 to 400 Hz.
Test currents (In per phase): less than 3.5mA.
Non-Contact Rotary Field Indication.
Frequency Range: 2 to 100 Hz.
Determine the Motor Connection.
Nominal Test Voltage (Ume): 1 to 400V AC.
Nominal Test Currents (In per phase): less than 3.5mA.
Frequency Range: 2 to 400Hz.
Color: Black.
Size: 124 x 61 x 27mm (4.9 x 24 x 1.1 inches).
Weight: 150g.
Package Included
1x NKTECH NK5900 Three-phase Rotation Indicator (Battery Not Included).
1 x NKTECH TL-1 Screwdriver.
1x English User\'s Manual.
1x Pair of Test Leads.
1 x Carrying Bag.
3 x Clips.
