HI End SQ 888 G5 5N OFC silver plated audio balanced interconnect cable with Carbon fiber XLR plug Audio Video AMP CD XLR Cable

HI End SQ 888 G5 5N OFC silver plated audio balanced interconnect cable with Carbon fiber XLR plug Audio Video AMP CD XLR Cable
  • Продавецplayrf.us
  • Список ценUS $34.00piece
  • Продажная ценаUS $34.00piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,6 (400)

Oписание продукта

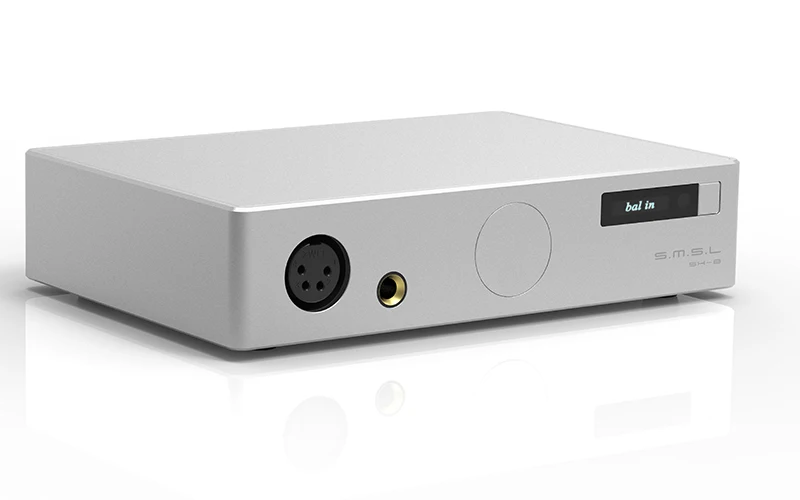

SMSL SH-8 Full Balanced Desktop HIFI Headphone Power Amplifier AMP High Performance with RCA/XLR Intput 6.35mm/Balanced Output

.

NOTE:
The SH-8 has remote control function, but the remote controller is not included.
If you need it,please contact us freely,in addition, the SU-8 remote control can be used for SH-8.




Features:
  • The newly designed discrete output stage circuit has ultra low distortion, as low as 0.001%, and the output current is larger than before.
  • A fully balanced circuit design from inputs to outputs.
  • Use electronic volume control to ensure the volume level are the same for left and right channel.
  • Use lots of audio grade component and HIFI coupling capacitors.
  • Popless mute circuit and protection circuit, for the health of headphones.
  • Built-in tone control function and SDB EQ mode, easily adapt your headphones.
  • Powered by a linear power supply, the all-aluminum CNC milling chassis to reduce magnetic noise.
  • The OLED display and user-friendly operating system are easy to understand and  can be operated by remote controller of SU-8.



Specification:

Input interface:Unbalanced (RCA) x 1, Balanced (XLR) x 1
Output interface :6.35mm headphone jack, balanced headphone jack
Unbalanced headphones: 32Ω 420mW /64Ω 377mW /150Ω 190mW /300Ω 100mW /600Ω 51mW
THD+N: 0.0009%
SNR :107dB
Balanced headphones:32Ω 655mW/64Ω 835mW/150Ω 717mW/300Ω 400mW/600Ω 205mW
THD+N: 0.001%
SNR : 109dB
Power Consumption : 3.5W
Standby power: <0.1W
Size : 185x40x125 (WxHxD)
Weight : 1.0kg

.

00000010001001

.

Remote control:

Install 2 x AAA batteries as instructions.
When using the remote control, point it toward the remote con-trol signal receiver on the main unit from a distance of 5 m (16 ft) or less. Do not place
obstructions between the main unit and the remote control.
The remote control might not work if the remote control signal receiver on the unit is exposed to direct sunlight or bright light. If this occurs, try moving the
unit.
Beware that use of this remote control could cause the unin-tentional operation of other devices that can be controlled by infra.
NOTE:1. This remote controller use 2 x R03/AAA battaries;  2. When you first operate SH-8,press the B key first

Change Settings:
  • BUTTON
Short press : Menu Switch
Long press : Power ON/OFF and quit menu
  • KNOB
Outside the menu : Volume control
In the menu : Control of menu items
